Technology
Forging is a kind of pressure on the metal material by forging machinery, to obtain a certain mechanical properties, shape and size of forging plastic deformation.
Material
30CrMnSi, which includes several alloy ellements, having great regidity, tenacity, thus to guarantee the metal wear-resistance, after forging process, the metal mechanical properties are much better than casting, thus forging bucket teeth are more wear-resisant and longer durable.
Performance
Our forging bucket teeth are widely applied in rock digging, ice-breaking and mine-digging, earth-moving and other severe working environments, highly increase the working efficiency, and decrease the replacment and maintenance cost.
Product Description
Technology
Forging is a kind of pressure on the metal material by forging machinery, to obtain a certain mechanical properties, shape and size of forging plastic deformation.
Material
30CrMnSi, which includes several alloy ellements, having great regidity, tenacity, thus to guarantee the metal wear-resistance, after forging process, the metal mechanical properties are much better than casting, thus forging bucket teeth are more wear-resisant and longer durable.
Performance
Our forging bucket teeth are widely applied in rock digging, ice-breaking and mine-digging, earth-moving and other severe working environments, highly increase the working efficiency, and decrease the replacment and maintenance cost.
Production process:
1)Casting processes:Sand, investment, steel and precision casting
2)Main Materials:Gray iron, ductile iron, steel, stainless steel, carbon steel, tool steel, structural alloy steel, heat-resisting steel, aluminum alloy and more
3)Special materials are also available
4)Materials chemical components supplied
5)Main production equipments:Wax injection, CNC-machine, machine-center, Heat treatment Furnace
YF Bucket Teeth leading advantage:
1) We have the catalog including different kinds of standard bucket tooth specification, such as Komatsu, Caterpillar, Daewoo, Hyundai, Hitachi, Volvo, Kobelco machine.
2) We can do different kinds of surface treatment after casting, such as machining, polishing, and plating
3) we make them by preciesion casting, investment casting and steel sand casting process in Ningbo, China
4) They are using for Heavy Equipments and others
|
Caterpillar bucket teeth we can supply. Here are the reference notes. |
|||
|
Part No |
Description |
Machine type |
Weight(kg) |
|
1U3252 |
Standard Tooth |
J250 |
3.0KGS |
|
1U3252RC |
Rock Tooth |
J250 |
3.3KGS |
|

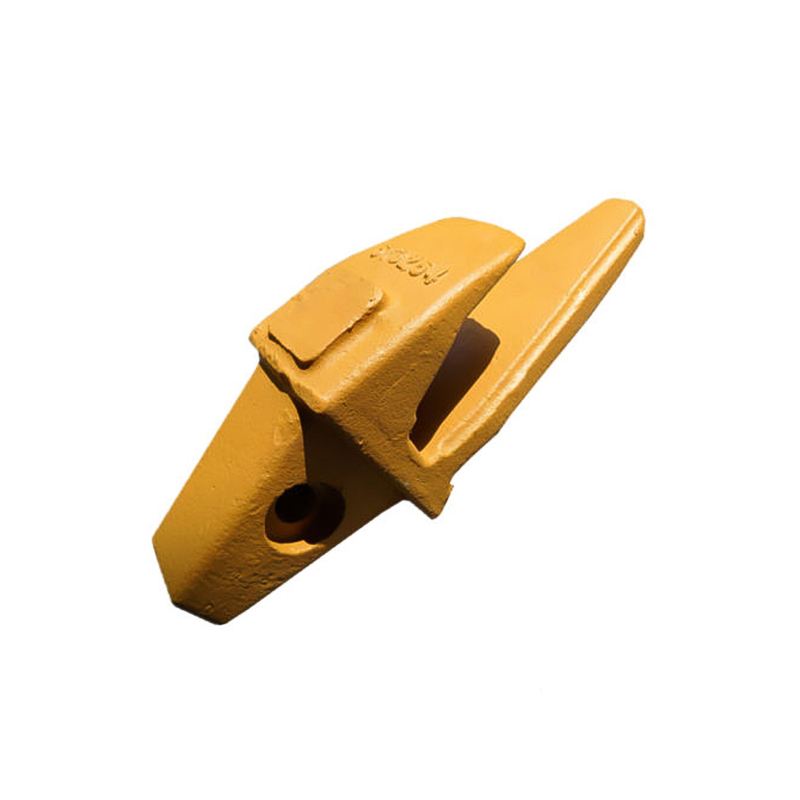

6Y3254 |
Tooth adapter(30mm) |
J250 |
3.9KGS |
|
1U3302K |
Rock Tooth |
J300 |
4.2KGS |
|
1U3302RC |
Rock Tooth |
J300 |
5.1KGS |
|
3G5304 |
Tooth Adapter(40mm) |
J300 |
8.4KGS |
|
1U3352 |
Standard Tooth |
J350 |
6.01KGS |
|
1U3352RC |
Rock Tooth |
J350 |
7.6KGS |
|
1U3352K |
Rock Tooth |
J350 |
|
|
KT320Z |
Tooth Adapter(40mm) |
J350 |
10.8KGS |
|
8E9490 |
Tooth Adapter(35mm) |
J350 |
6.8KGS |
|
3G8354 |
Tooth Adapter |
J350 |
10.8KGS |
|
E200BCL/R |
Side Cutter |
J300 |
11KGS |
|
7T3402 |
Standard Tooth |
J400 |
8.6KGS |
|
7T3402RC |
Rock Tooth |
J400 |
10KGS |
|
LG450RC |
Rock Tooth |
J450 |
13.7KGS |
|
6I6404 |
Tooth Adapter |
J400 |
13.2KGS |
|
1U3452P |
Standard Tooth |
J450 |
10KGS |
|
1U3452RC |
Rock Tooth |
J450 |
14.75KGS |
|
9W8452 |
Standard Tooth |
J450 |
11.6KGS |
|
9N4452 |
Standard Tooth |
J450 |
16.5KGS |
|
6I6464 |
Tooth Adapter |
J450 |
21.3KGS |
|
8E6464 |
Tooth Adapter |
J450 |
20.4KGS |
|
E330BCL/R |
Side Cutter |
J450 |
20.4KGS |
|
9W8552 |
Standard Tooth |
J500 |
20KGS |
|
1U3552RC |
Rock Tooth |
J500 |
23.1 KGS |
|
6I6554 |
Tooth Adapter |
J500 |
33KGS |
|
112-2489-30/35 |
Bucket Protector |
J350 |
16.3KGS |
|
112-2489-40 |
Bucket Protector |
J350 |
16.8KGS |
|
6I6602 |
Standard Tooth |
J600 |
29.3KGS |
|
6I6602RC |
Rock Tooth |
J600 |
41KGS |
|
232-0173 |
Tooth |
J700 |
45.2KGS |
|
6I6604 |
Tooth Adapter |
J700 |
54KGS |
