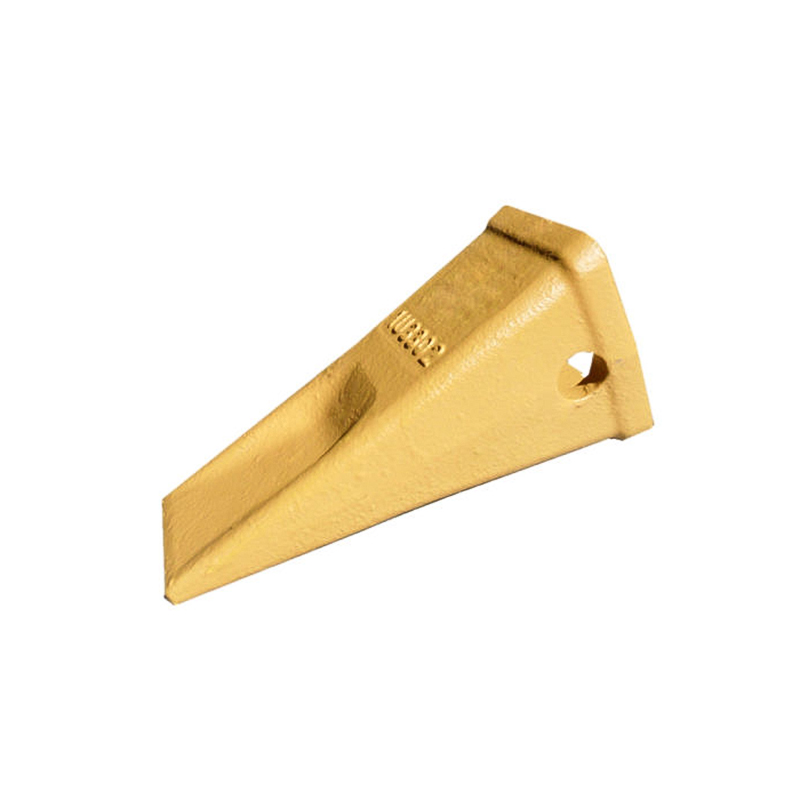

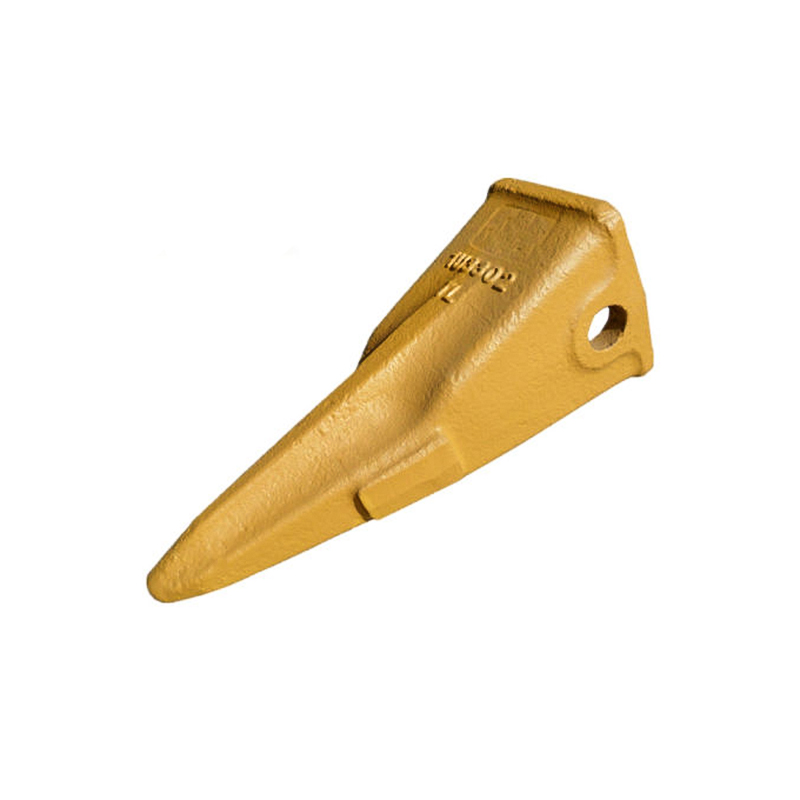

Excavator Adapter Single Tiger Tooth for Bucket Tooth Cat J300

Product Description

What is a high quality Bucket Teeth ?

What kind of steel is used as raw material for bucket tooth?

It is cast or forged? (Forging is much better than casting. Because the density of the forging process is high.So the teeth are not only high hardness and wear resistance, but the price of the bucket teeth is slightly higher. At present, it is better to use alloy steel as the raw material for the forging technology.

The same type of two different process bucket teeth, there is a difference in appearance. Because the forging density is high, so the forged bucket tooth will also be heavy.By using a hacksaw to cut the bucket teeth, it is obvious that there are different hardness.

Bucket Teeth Material:

Low alloy steel is the main raw material for bucket teeth in casting.Its main elements C, Si, Mn, Cr, Al, ect.　In our foundry, we can add some micro elements, like Mo, Ni to improve the wear resistance to get better working performance.

Bucket Teeth Investment Casting Process

At present, all bucket teeth adapters will be produced in our foundry are in lost wax investment casting. The investment casting process are similar with most precision casting products.

The Main process for bucket tooth adapter:1-Confirm bucket teeth types. 2-Design confirming.3-Mould Making.　4-Wax Producing.5-Shell Making.6-Dewax.7-Casting.8-Cutting.9-Heat Treatment.10-Quality Introspection-Delivering

Excavator Adapter

Production process:

1)Casting processes: Sand, investment, steel and precision casting

2)Main Materials: Gray iron, ductile iron, steel, stainless steel, carbon steel, tool steel, structural alloy steel, heat-resisting steel, aluminum alloy and more

3)Special materials are also available

4)Materials chemical components supplied

5)Main production equipments: Wax injection, CNC-machine, machine-center, Heat treatment Furnace

YF Bucket Teeth leading advantage:

1) We have the catalog including different kinds of standard bucket tooth specification, such as Komatsu, Caterpillar, Daewoo, Hyundai, Hitachi, Volvo, Kobelco machine.

2) We can do different kinds of surface treatment after casting, such as machining, polishing, and plating

3) we make them by preciesion casting, investment casting and steel sand casting process in Ningbo, China

4) They are using for Heavy Equipments and others
